Description
This service cuts your CZ75 slide (P01, SP01, etc.) for a RMR pattern optic – Trijicon RMR/RCR and Holosun 407c/507c/508t/507comp. The RMR footprint is wider than the CZ slide, requiring a custom plate for installation. Your slide will be cut to fit our RMR plate, which includes a Glock-style dovetail. The factory rear iron dovetail will be removed, but the plate will come with front and rear iron sights compatible with this setup. The front bosses will be milled to ensure proper optic location, providing universal fitment for any in-spec optic. The threaded holes will not interfere with internal slide components, and are threaded 6-32.
INTERNALS: Please include the internals (extractor, firing pin, etc.) with your slide, as we will need to shorten the extractor retaining pin after cutting. The barrel and recoil spring are not required. If the extractor pin is not included, you are responsible for shortening it to 3/8″. Models with a Loaded Chamber Indicator (LCI) can be cut, but the LCI will no longer function and you will visibly see a partial hole left where it used to sit. Note that we cannot cut SP01 Shadow models at this time. The SRO/RMRhd will fit this cut but may overhang the ejection port and are not recommended due to potential malfunctions.
RMR SCREWS: RMR screws are included for Trijicon optics. If you are mounting a Holosun optic (407c/507c/508t/507comp), use the screws that come with the Holosun optic for Glock MOS plates. Ensure only 1/8″ of screw engagement to avoid bottoming out. Failure to follow these instructions and installing an optic with screws that are too long can cause damage to the slide and/or plate and the cost for any repairs/replacements needed would be incurred by the customer.
This RMR cut can be done on top of a previous Holosun K footprint cut performed by us.
RECOMMENDED SIGHTS: Lower 1/3 co-witness sights are included.

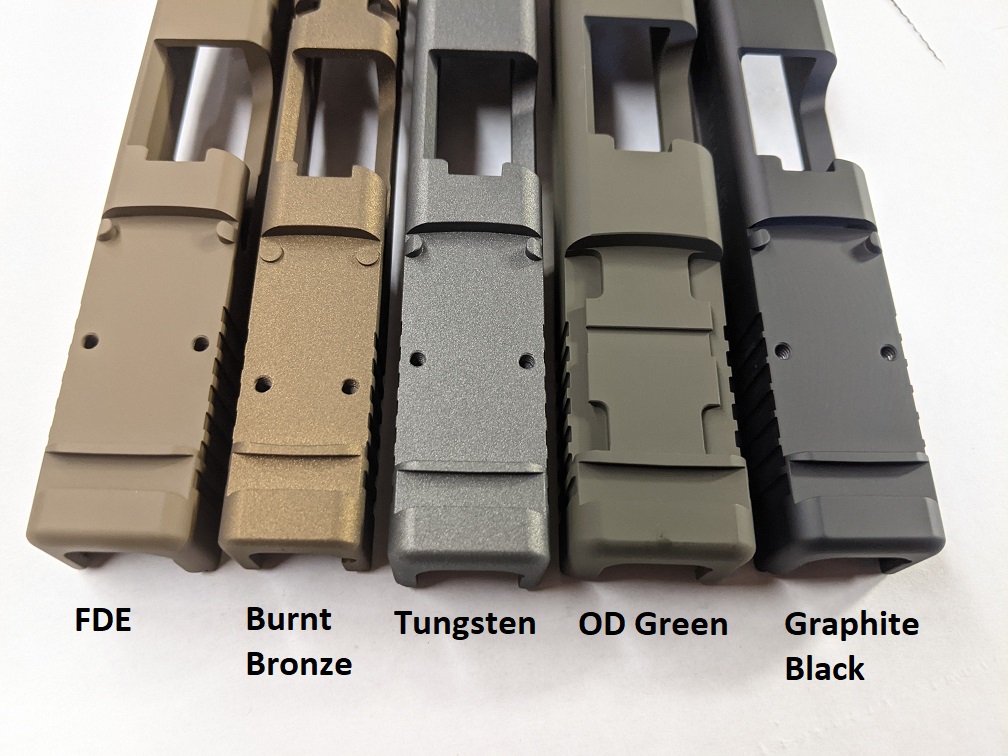

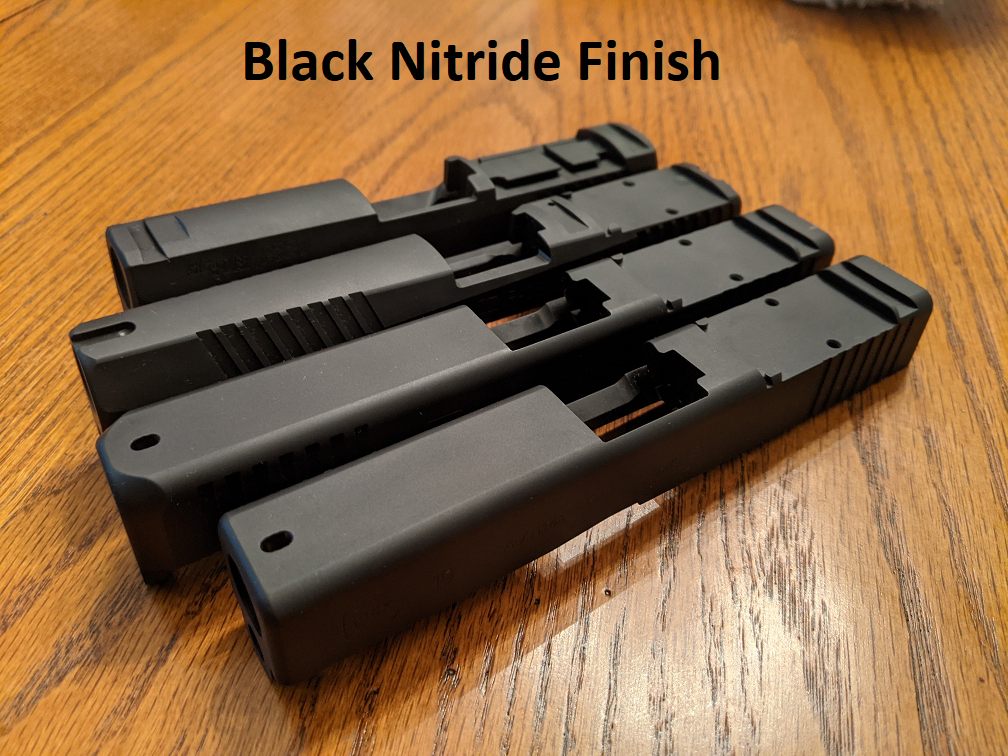

COATINGS: Three refinishing options are available. Cold blue is a chemical that reacts with bare steel and offers very little protection, but allows the refinishing of just the machined area rather the the full slide. The cerakote and nitride options are for the entire slide. We use H series oven cure cerakote and offer 5 colors. The black nitride is a OEM style metal heat treatment that improves surface hardness and gives the slide higher wear resistance compared to the cerakote. Note that nitride lead times are not guaranteed and may take 3-4 weeks.
The optic plate will be finished with graphite black Cerakote.
For detailed coating descriptions, see our Coatings Explained Page.
THE PROCESS: After checkout, you will receive instructions on shipping your stripped slide to us. We cannot handle frames. We will complete the cut and/or Cerakote and ship the slide back to you promptly. You will receive an email notification once your slide has been shipped back.
TIMELINE: Upon receiving your slide, we will complete the work in 2 weeks or less (unless you choose nitride) and ship it back to you. This includes coating.
Note: Your order will be returned to the address provided at checkout. Include a copy of your confirmation email when shipping your slide to us; failure to do so will increase turnaround time.
DISCLAIMER: This product is not manufactured, authorized, endorsed, or warranted by CZ. CZ does not warrant or represent that this product is compatible with CZ pistols.
Gavin –
Optic fit on this plate like a glove, absolutely zero wiggle room perceptible and has the cleanest look of any I’ve seen thus far
Nick –
I had this done on my SP-01 after my EPS sat too low which caused the moa adjustment for elevation to max out before matching poi. I was in the first group this was offered too and it’s been about 6 months since the service. I am completely satisfied. I also see that the confusion over which screws is now spelled out clearly. Wager was great and helped turn my project around.
